극동호이스트



OVER HEAD CRANE
SINGLE GIRDER,DOUBLE GIRDER

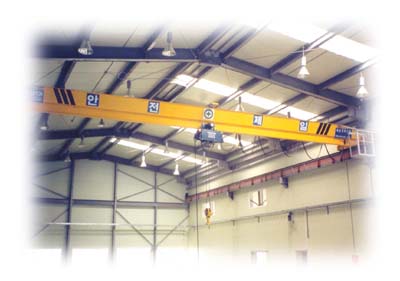

Single Girder with Mono-Rail Hoist

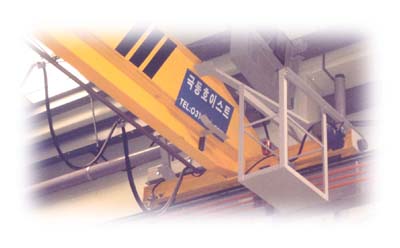

Parts Identification

① Electric Hoist
② 6-Push Button Switch
③ Girder
④ End Carriage
⑤ Long Travel Geared Motor
⑥ Long Travel Wheel
⑦ Bumper
⑧ Five Cross Travel Power Supply-Trolley Bar
⑨ Three Cross Travel Power Supply-Trolley Bar
⑩ Long Travel Rail



Capacity

(ton)

Span(S)

(m)

Girder

type

Traversing

Speed

(m/min)

Travelling

Motor

(kw)

Lift

(m)

Dimensions (mm)

Travel

Wheel

(Ø)

Travel

Rail

(kg/m)

H

A

B

C

D

E

M

N

0.5

7.5

1B-1M-2

20

(15)

1.5x2

(0.75x2)

4~12

500

2000

1500

250

145

562

800

800

160

15

10.0

1B-1M-3

12.5

CV-1M-1

15.0

17.5

2500

2000

250

150

564

20.0

CV-1M-2

200

22.5

CV-1M-3

3000

2500

25.0

CV-2M-1

4000

3500

883

1.0

7.5

1B-1M-2

20

(15)

1.5x2

(0.75x2)

4~12

575

2000

1500

250

145

562

800

800

160

15

10.0

1B-1M-3

12.5

CV-1M-1

15.0

2500

2000

250

17.5

CV-1M-2

150

564

200

20.0

CV-1M-3

22.5

CV-2M-2

3000

2500

883

25.0

CV-2M-3

4000

3500

2.0

7.5

CV-1M-1

20

(15)

1.5x2

(0.75x2)

4~12

665

(725)

2500

2000

250

145

562

800

800

160

15

10.0

12.5

CV-1M-2

3000

2500

564

15.0

17.5

CV-2M-2

4200

3500

300

150

883

200

20.0

CV-2M-3

170

250

22

22.5

4700

4000

3.0

(2.8)

7.5

CV-1M-2

20

(15)

1.5x2

(0.75x2)

4~12

770

(810)

3000

2500

350

145

564

800

800

160

15

10.0

12.5

CV-1M-3

150

200

15.0

CV-2M-2

17.5

CV-2M-3

3500

3000

958

5.0

7.5

CV-1M-3

20

(15)

1.5x2

(0.75x2)

4~12

890

(1010)

3200

2500

360

150

958

800

800

200

15

10.0

CV-2M-3

12.5

170

250

22
