극동호이스트



KD-1 type

저용량으로 설계된 KD-1 type Hoist 는 더욱 작고 미려한 몸체, 슬립클러치 채용으로 완벽해진 안전성, 무결점을 실현한 극동의 미래형 제품으로 탁월한 성능과 작업생산성 향상에 적합한 최고의 제품입니다.



Standard Specifications



Model



Capacity

(kg)

Lift

(m)

Duty rating

(min)

Speed (m/min)

Test load

(kg)

Lifting -

Traversing -

Single

Dual

Single

Single

Dual

50Hz

60Hz

50HZ

60Hz

50HZ

60Hz

KD-1

490

4

30

15/5

6.7

8

6.7/1.7

8/2

-

-

613

KD-1

500

4

30

15/5

6.7

8

6.7/1.7

8/2

-

-

625

KD-1

1,000

4

30

15/5

6.7

8

6.7/1.7

8/2

-

-

1,250

KD-1

2,000

4

30

15/5

3.35

4

3.35/0.85

4/1

-

-

2,500

KD-1M

490

4

30

15/5

6.7

8

6.7/1.7

8/2

10(20)

12(24)

613

KD-1M

500

4

30

15/5

6.7

8

6.7/1.7

8/2

10(20)

12(24)

625

KD-1M

1,000

4

30

15/5

6.7

8

6.7/1.7

8/2

10(20)

12(24)

1,250

KD-1M

2,000

4

30

15/5

3.35

4

3.35/0.85

4/1

10(20)

12(24)

2,500

Capacity

(kg)

Out Put (kw)

Load chain

dia x

fall lines

Net Weight

(kg)

Lifting -

Traversing -

Single

Dual

Single

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

KD-1

KD-1M

KD-1G

KD-1P

490

0.67

0.8

0.67/0.17

0.8/0.20

0.33

0.4

Ø7.1x1

55

95

80

76

500

0.67

0.8

0.67/0.17

0.8/0.20

0.33

0.4

Ø7.1x1

55

95

80

76

1,000

1.25

1.5

1.25/0.32

1.5/0.38

0.33

0.4

Ø7.1x1

59

100

85

81

2,000

1.25

1.5

1.25/0.32

1.5/0.38

0.33

0.4

Ø7.1x2

75

115

97

93

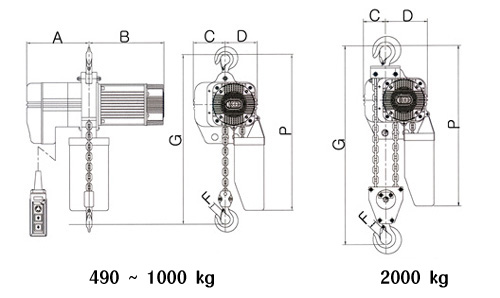

Dimension









Model

Capacity

(kg)

G

A

B

C

D

F

H

I

K

L

M

P

Std. I-Beam

Width

(mm)

Min. radius

for Curve

(mm)

KD-1

490

450

258

265

132

132

28

-

-

-

-

-

663

-

-

KD-1

500

450

258

265

132

132

28

-

-

-

-

-

663

-

-

KD-1

1,000

450

258

308

132

132

28

-

-

-

-

-

663

-

-

KD-1

2,000

640

258

308

97

167

33

-

-

-

-

-

683

-

-

KD-1M

490

435

258

265

75,100,125

-

28

310

175

230

27

70

663

75,100,125

1,000

KD-1M

500

435

258

265

75,100,125

-

28

310

175

230

27

70

663

75,100,125

1,000

KD-1M

1,000

435

258

308

75,100,125

-

28

310

175

230

27

100

663

75,100,125

1,000

KD-1M

2,000

670

258

308

100,125,150

-

33

314

184

296

31

115

667

100,125,150

1,500

※ G = Min. distance between hooks or from bottom of I-beam to Hook.
