극동호이스트



KD-2 type

저소음형으로 설계된 KD-2 type Hoist 는 강력모터 채용과 이중브레이크 및 리미트를 장착, 최고의 안전성으로 운반하역의 합리화를 추구한 최고의 제품입니다.





Standard Specifications



Model



Capacity

(kg)

Lift

(m)

Duty rating

(min)

Speed (m/min)

Test load

(kg)

Lifting -

Traversing -

Single

Dual

Single

Single

Dual

50Hz

60Hz

50HZ

60Hz

50HZ

60Hz

KD-2

2,000

4

30

15/5

6.2

7.4

6.2/1.6

7.4/1.8

-

-

2,500

KD-2

2,800

4

30

15/5

4.5

5.4

4.5/1.1

5.4/1.3

-

-

3,500

KD-2

3,000

4

30

15/5

4.5

5.4

4.5/1.1

5.4/1.3

-

-

3,750

KD-2

5,000

4

30

15/5

2.3

2.7

2.3/0.6

2.7/0.8

-

-

6,250

KD-2M

2,000

4

30

15/5

6.2

7.4

6.21.6

7.4/1.8

10

12

2,500

KD-2M

2,800

4

30

15/5

4.5

5.4

4.5/1.1

5.4/1.3

10

12

3,500

KD-2M

3,000

4

30

15/5

4.5

5.4

4.5/1.1

5.4/1.3

10

12

3,750

KD-2M

5,000

4

30

15/5

2.3

2.7

2.3/0.6

2.7/0.7

10

12

6,250

Capacity

(kg)

Out Put (kw)

Load chain

dia x

fall lines

Net Weight

(kg)

Lifting -

Traversing -

Single

Dual

Single

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

KD-2

KD-2M

KD-2G

KD-2P

2,000

2.5

3.0

2.5/0.63

3.0/0.75

0.33

0.4

Ø11.2x1

137

177

162

157

2,800

2.5

3.0

2.5/0.63

3.0/0.75

0.33

0.4

Ø9.5x2

151

208

191

186

3,000

2.5

3.0

2.5/0.63

3.0/0.75

0.33

0.4

Ø9.5x2

151

208

191

186

5,000

2.5

3.0

2.5/0.63

3.0/0.75

0.33

0.4

Ø11.2x2

160

243

226

221

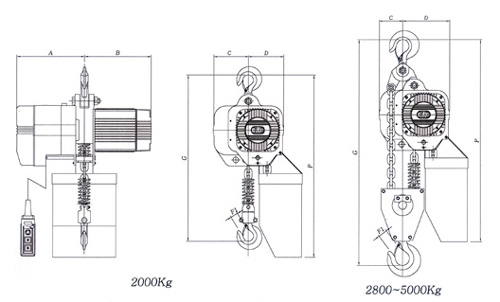

Dimension









Capacity

(kg)

G

A

B

C

P

KD-2

KD-2M

KD-2

KD-2M

KD-2

KD-2M

KD-2

KD-2M

KD-2

KD-2M

2,000

790

772

303

303

317

317

168

100,125,150

805

770

2,800

970

964

303

303

317

317

113

100,125,150

895

900

3,000

970

964

303

303

317

317

113

100,125,150

895

900

5,000

1,080

1,054

303

303

317

317

113

125,150,175

970

950



Capacity

(kg)

D

F

H

I

K

L

M

Std. I-Beam

Width (mm)

Min. radius

for Curve

(mm)

2,000

168

33

308-b

169-b

296

31

100

100,125,150

1,500

2,800

223

41

310-b

171-b

337

38

115

100,125,150

1,500

3,000

223

41

310-b

171-b

337

38

115

100,125,150

1,500

5,000

223

48

315-b

176-b

385

45

135

125,150,175

1,500

※ G = Min. distance between hooks or from bottom of I-beam to Hook.

    c = Width of I-Beam

    b = c/2
