극동호이스트



Standard type Wire Rope Hoist


Mono-Rail  type Hoist

Double-Rail  type Hoist

Combined  type Hoist

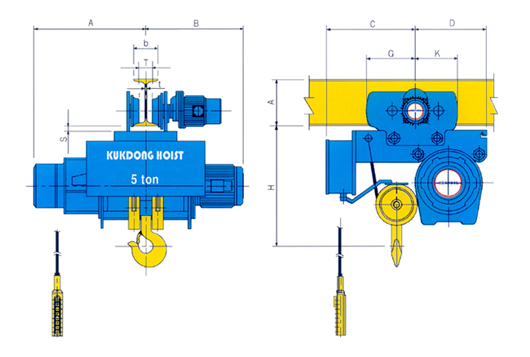

Low Head  type Hoist

1 t ~ 5 t

2 t ~ 5t

7.5/3 t ~ 30/5 t

1 t ~ 5 t

7.5 t ~ 20 t

7.5 t ~ 30 t

35/10 t ~ 70/20 t





35 t ~ 70 t

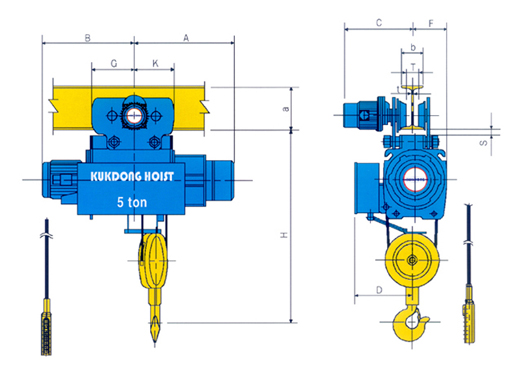

Mono-Rail type Hoist (1 t ~ 5 t)



 Capacity (ton)

1

2

2.8

3

5

Type

Hoisting speed

(High-Low)

Traversing speed

(High-Low)

High-High

SM1-H6(12)-MH

SM2-H6(12)-MH

SM2.8-H6(12)-MH

SM3-H6(12)-MH

SM5-H6(12)-MH

High-Low

SM1-H6(12)-ML

SM2-H6(12)-ML

SM2.8-H6(12)-ML

SM3-H6(12)-ML

SM5-H6(12)-ML

Low-High

SM1-L6(12)-MH

SM2-L6(12)-ML

SM2.8-L6(12)-MH

SM3-L6(12)-MH

SM5-L6(12)-MH

Low-Low

SM1-L6(12)-ML

SM2-L6(12)-ML

SM2.8-L6(12)-ML

SM3-L6(12)-ML

SM5-L6(12)-ML

Hoisting

Max. Lift(m)

6(12)

6(12)

6(12)

6(12)

6(12)

Speed

(m/min)

High speed

( 50/60Hz)

10/12

8.4/10

7.5/9

7.5/9

4.7/5.6

Low speed

( 50/60Hz)

6.6/8

5.4/6.5

3.7/4.5

3.7/4.5

3.5/4.2

Motor

(Kw x P)

High speed

2.2 x 4

3.7 x 4

5.0 x 4

5.5 x 4

5.5 x 6

Low speed

1.5 x 6

2.5 x 6

2.5 x 8

2.8 x 8

4.2 x 8

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm)x

No. of ropes

8 x 2

10 x 2

12 x 2

12 x 2

16 x 2

Brake

DC magnet disc brake

Traver

sing

Speed

(m/min)

High speed

( 50/60Hz)

20/24

20/24

20/24

20/24

20/24

Low speed

( 50/60Hz)

13/16

13/16

13/16

13/16

13/16

Motor

(Kw x P)

High speed

0.4 x 4

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Low speed

0.2 x 6

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Dimension

(approx.)

(mm)

H

815

980

1115

1115

1325

A

400(500)

470(570)

520(620)

520(620)

625(715)

B

380(480)

430(530)

455(555)

455(555)

525(615)

D

275

310

365

365

405

G

255

260

260

260

275

K

200

225

225

225

275

I-Beam and

spacing

(mm)

a x b x t

C

F

S

T

C

F

S

T

C

F

S

T

C

F

S

T

C

F

S

T

200 x 100 x 7

324

160

39

60

454

195

35

45

-

-

-

-

-

-

-

-

-

-

-

-

250 x125 x 7.5

337

160

37

85

467

195

34

76

465

200

34

76

465

200

34

76

485

240

46

60

300 x 150 x 10

349

160

32

110

479

195

29

95

475

200

29

95

475

200

29

95

490

240

40

85

Min. radius of

curvature (m)

1.5

1.8

1.8

1.8

2.3

Weight(approx.)

(Kg)

190(218)

278(314)

374(418)

374(418)

580(642)

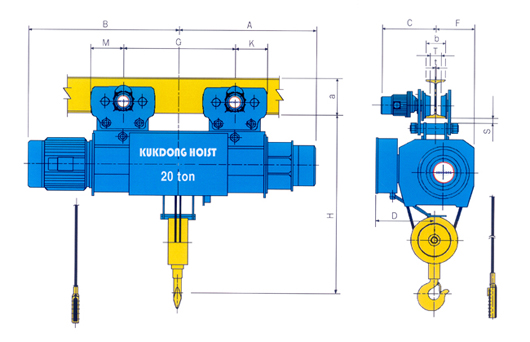

  Mono-Rail type Hoist (7.5 t ~ 20 t)



 Capacity (ton)

7.5

10

15

20

Type

Hoisting speed

(High-Low)

Traversing speed

(High-Low)

High-High

SM7.5-H12-MH

SM10-H12-MH

SM15-H12-MH

SM20-H12-MH

High-Low

SM7.5-H12-ML

SM10-H12-ML

SM15-H12-ML

SM20-H12-ML

Low-High

SM7.5-L12-MH

-

-

-

Low-Low

SM7.5-L12-ML

Hoisting

Max. Lift(m)

12

12

12

12

Speed

(m/min)

High speed

( 50/60Hz)

3.1/3.8

3.7/4.5

3.5/4.2

3.5/4.2

Low speed

( 50/60Hz)

2.3/2.8

-

-

-

Motor

(Kw x P)

High speed

5.5 x 6

9 x 8

13 x 8

17 x 8

Low speed

4.2 x 8

-

-

-

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

14 x 4

16 x 4

20 x 4

22.4 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

0.75 x 4

(2units)

0.75 x 4

(2units)

1.5 x 4

(2units)

1.5 x 4

(2units)

Low speed

0.5 x 6

(2units)

0.5 x 6

2units)

1.0 x 6

(2units)

1.0 x 6

(2units)

Brake

DC magnet disc brake

Dimension(approx.)

(mm)

H

1460

1565

2115

2115

A

925

990

1110

1160

B

835

955

1170

1220

D

460

510

640

640

G

800

800

800

850

K

275

275

300

300

M

275

275

300

300

I-Beam and spacing

(mm)

a x b x t

C

F

S

T

C

F

S

T

C

F

S

T

C

F

S

T

300 x 150 x 10

480

295

35

68

480

320

35

68

-

-

-

-

-

-

-

-

450 x 175 x 13

497

295

30

93

497

320

30

93

580

400

32

72

580

400

32

72

550 x 190 x 13

510

295

25

118

510

320

25

118

590

400

32

92

590

400

32

92

Min. radius of curvature (m)

For Straight rails only

Weight(approx.) (Kg)

910

1210

2030

2300

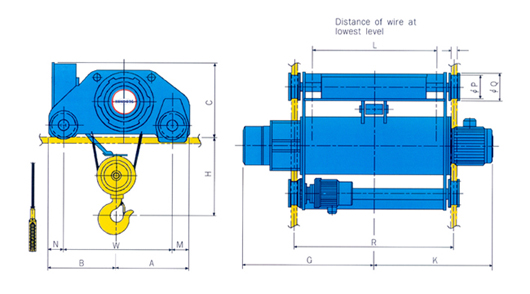

Double-Rail type Hoist (2 t ~ 5 t)



 Capacity (ton)

2

2.8

3

5

Type

Hoisting speed

(High-Low)

Traversing speed

(High-Low)

High-High

SD2-H12-MH

SD2.8-H12-MH

SD3-H12-MH

SD5-H12-MH

High-Low

SD2-H12-ML

SD2.8-H12-ML

SD3-H12-ML

SD5-H12-ML

Low-High

SD2-L12-MH

SD2.8-L12-MH

SD3-L12-MH

SD5-L12-MH

Low-Low

SD2-L12-ML

SD2.8-L12-ML

SD3-L12-ML

SD5-L12-ML

Hoisting

Max. Lift(m)

12

12

12

12

Speed
(m/min)

High speed

( 50/60Hz)

8.4/10

7.5/9

7.5/9

4.7/5.6

Low speed

( 50/60Hz)

5.4/6.5

3.7/4.5

3.7/4.5

3.5/4.2

Motor
(Kw x P)

High speed

3.7 x 4

5.0 x 4

5.5 x 4

5.5 x 6

Low speed

2.5 x 6

2.5 x 8

2.8 x 8

4.2 x 8

Wire rope

Construction

6 x 19

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

8 x 4

9 x 4

9 x 4

12.5 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

20/24

20/24

20/24

20/24

Low speed

( 50/60Hz)

13/16

13/16

13/16

13/16

Motor

(Kw x P)

High speed

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Low speed

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Dimension(approx.)

(mm)

H

415

420

420

510

R

950

950

950

1150

A

465

465

465

507

B

390

390

390

474

C

410

515

515

560

G

750

785

785

940

K

710

715

715

850

W

650

650

650

760

D

47

47

47

47

L

680

690

690

890

M

112

112

112

119

N

93

93

93

102

Ø P

140

140

140

165

Ø Q

170

170

170

195

Weight(approx.) (Kg)

450

550

550

850

Rail (Kg/m)

15

15

15

15

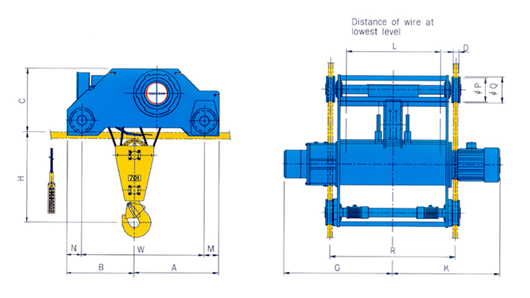

Double-Rail type Hoist (7.5 t ~ 30 t)



 Capacity (ton)

7.5

10

15

20

30

Type

Hoisting speed

(High-Low)

Traversing speed

(High-Low)

High-High

SD7.5-H12-MH

SD10-H12-MH

SD15-H12-MH

SD20-H12-MH

SD30-H12-MH

High-Low

SD7.5-H12-ML

SD10-H12-ML

SD15-H12-ML

SD20-H12-ML

SD30-H12-ML

Low-High

SD7.5-L12-MH

-

-

-

-

Low-Low

SD7.5-L12-ML

Hoisting

Max. Lift(m)

12

12

12

12

12

Speed

(m/min)

High speed

( 50/60Hz)

3.1/3.8

3.7/4.5

3.5/4.2

3.5/4.2

2.3/2.8

Low speed

( 50/60Hz)

2.3/2.8

-

-

-

-

Motor

(Kw x P)

High speed

5.5 x 6

9 x 8

13 x 8

17 x 8

17 x 8

Low speed

4.2 x 8

-

-

-

-

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

14 x 4

16 x 4

20 x 4

22.4 x 4

22.4 x 6

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

0.75 x 4

0.75 x 4

1.5 x 4

1.5 x 4

1.5 x 4

(2units)

Low speed

0.5 x 6

0.5 x 6

1.0 x 6

1.0 x 6

1.0 x 6

(2units)

Dimension(approx.)

(mm)

H

730

775

1175

1175

1480

R

1150

1150

1200

1300

1800

A

510

565

670

670

930

B

495

510

610

610

950

C

645

650

880

880

980

G

925

990

1110

1160

1405

K

835

955

1170

1220

1480

W

800

865

1000

1000

1540

D

58

58

58

58

70

L

850

850

870

935

1420

M

110

110

140

140

180

N

95

100

140

140

160

Ø P

165

165

220

220

250

Ø Q

195

195

250

250

280

Weight(approx.) (Kg)

900

1200

1850

2300

3450

Rail (Kg/m)

15

15

22

22

30





Double-Rail type Hoist (35 t ~ 70 t)



 Capacity (ton)

35

50

60

70

Type

High Speed Traversing

SD35-H12-MH

SD50-H12-MH

SD60-H12-MH

SD70-H12-MH

Low Speed Traversing

SD35-H12-ML

SD50-H12-ML

SD60-H12-ML

SD70-H12-ML

Hoisting

Max. Lift(m)

12

12

12

12

Speed

(m/min)

50/60Hz

4/4.8

2.7/3.2

2/2.4

2/2.4

Motor (Kw x P)

33 x 6

33 x 6

33 x 6

33 x 6

Wire rope

Construction

6 x Fi(25)

6 x Fi(25)

6 x Fi(25)

6 x Fi(25)

Dia.(mm) x

No. of ropes

28 x 4

28 x 6

28 x 8

28 x 8

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

2.2 x 4

2.2 x 4

(2units)

2.2 x 4

(2units)

2.2 x 4

(2units)

Low speed

1.5 x 6

1.5 x 6

(2units)

1.5 x 6

(2units)

1.5 x 6

(2units)

Dimension(approx.)

(mm)

H

1490

1680

1780

1780

R

1550

2300

2800

2800

A

1025

1432

1525

1525

B

955

1243

1150

1150

C

1013

1195

1195

1195

G

1455

1780

2030

2030

K

1460

1860

2110

2110

W

1550

2125

2125

2075

D

70

80

80

80

L

1044

1430

1930

1930

M

215

275

275

300

N

215

275

275

300

Ø P

355

450

450

500

Ø Q

395

490

490

540

Weight(approx.) (Kg)

5200

7000

8500

9000

Rail (Kg/m)

37

50

50

50

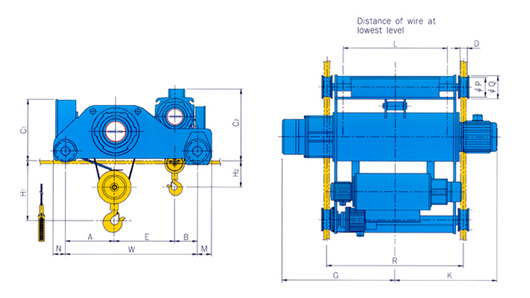

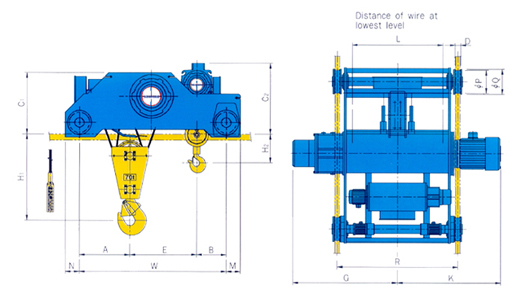

Combined type Hoist (7.5/3 t ~ 30/5 t)



 Capacity (ton)

7.5/3

10/3

15/5

20/5

30/5

Type

Hoisting speed

(High-Low)

Traversing speed

(High-Low)

High-High

SD7.5/3-H12-MH

SD10/3-H12-MH

SD15/5-H12-MH

SD20/5-H12-MH

SD30/5-H12-MH

High-Low

SD7.5/3-H12-ML

SD10/3-H12-ML

SD15/5-H12-ML

SD20/5-H12-ML

SD30/5-H12-ML

Low-High

SD7.5/3-L12-MH

SD10/3-L12-MH

SD15/5-L12-ML

SD20/5-L12-MH

SD30/5-L12-MH

Low-Low

SD7.5/3-L12-ML

SD10/3-L12-ML

SD15/5-L12-ML

SD20/5-L12-ML

SD30/5-L12-ML

Hoisting

Max. Lift(m)

12

12

12

12

12

12

12

12

12

12

Speed

(m/min)

High speed

( 50/60Hz)

3.1/3.8

7.5/9

3.7/4.5

7.5/9

3.5/4.2

4.7/5.6

3.5/4.2

4.7/5.6

2.3/2.8

4.7/5.6

Low speed

( 50/60Hz)

2.3/2.8

3.7/4.5

-

3.7/4.5

-

3.5/4.2

-

3.5/4.2

-

3.5/4.2

Motor

(Kw x P)

High speed

5.5 x 6

5.5 x 4

9 x 8

5.5 x 4

13 x 8

5.5 x 6

17 x 8

5.5 x 6

17 x 8

5.5 x 6

Low speed

4.2 x 8

2.8 x 8

-

2.8 x 8

-

4.2 x 8

-

4.2 x 8

-

4.2 x 8

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

14 x 4

12 x 2

16 x 4

12 x 2

20 x 4

16 x 2

22.4 x 4

16 x 2

22.4 x 6

16 x 2

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

0.75 x 4

0.75 x 4

1.5 x 4

1.5 x 4

1.5 x 4

(2units)

Low speed

0.5 x 6

0.5 x 6

1 x 6

1 x 6

1 x 6

(2units)

Dimension(approx.)

(mm)

H1

730

775

1175

1175

1480

H2

350

350

365

350

300

R

1150

1150

1200

1300

1800

A

400

410

550

550

790

B

350

350

390

480

455

E

700

830

710

690

935

W

1450

1590

1650

1720

2180

M

110

110

140

140

180

N

95

100

140

140

160

C1

645

650

880

880

980

C2

770

770

970

970

990

G

925

990

1110

1160

1405

K

835

955

1170

1220

1480

L

850

850

870

935

1418

D

58

58

58

58

70

Ø P

165

165

220

220

250

Ø Q

195

195

250

250

280

Weight(approx.) (Kg)

1450

1700

2475

3200

4200

Rail (Kg/m)

15

15

22

22

30





Combined type Hoist (35/10 t ~ 70/20 t)



 Capacity (ton)

35/10

50/15

60/20

70/20

Type

Hoisting speed

(High-Low)

Traversing speed

(High-Low)

High-High

SD35/10-H12-MH

SD50/15-H12-MH

SD60/20-H12-MH

SD70/20-H12-MH

High-Low

SD35/10-H12-ML

SD50/15-H12-ML

SD60/20-H12-ML

SD70/20-H12-ML

Low-High

SD35/10-L12-MH

-

-

-

Low-Low

SD35/10-L12-ML

Hoisting

Max. Lift(m)

12

12

12

12

12

12

12

12

Speed

(m/min)

High speed

( 50/60Hz)

Low speed

( 50/60Hz)

4/4.8

3.7/4.5

2.7/3.2

3.5/4.2

2/2.4

3.5/4.2

2/2.4

3.5/4.2

Motor

(Kw x P)

High speed

( Low speed)

33 x 6

9 x 8

33 x 6

13 x 8

33 x 6

17 x 8

33 x 6

17 x 8

Wire rope

Construction

6 x Fi(25)

6 x 37

6 x Fi(25)

6 x 37

6 x Fi(25)

6 x 37

6 x Fi(25)

6 x 37

Dia.(mm) x

No. of ropes

28 x 4

16 x 4

28 x 6

20 x 4

28 x 8

22.4 x 4

28 x 8

22.4 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

2.2 x 4

2.2 x 4

(2units)

2.2 x 4

(2units)

2.2 x 4

(2units)

Low speed

1.5 x 6

1.5 x 6

(2units)

1.5 x 6

(2units)

1.5 x 6

(2units)

Dimension(approx.)

(mm)

H1

1490

1680

1780

1780

H2

170

190

383

358

R

1550

2300

2800

2800

A

968

968

968

943

B

607

607

607

582

E

1375

1375

1375

1375

W

2950

2950

2950

2900

M

215

275

275

300

N

215

275

275

300

C1

1013

1220

1220

1220

C2

1235

1570

1607

1607

G

1455

1780

2030

2030

K

1460

1860

2110

2110

L

1044

1430

1930

1930

D

70

80

80

80

Ø P

355

450

450

500

Ø Q

395

490

490

540

Weight(approx.) (Kg)

7000

9000

11200

12400

Rail (Kg/m)

37

50

50

50





Low Head type Hoist (1 t ~ 5 t)



 Capacity (ton)

1

2

2.8

3

5

Type

Hoisting speed

(High-Low)

Traversing speed

(High-Low)

High-High

SL1-H6-MH

SL2-H6-MH

SL2.8-H6-MH

SL3-H6-MH

SL5-H6-MH

High-Low

SL1-H6-ML

SL2-H6-ML

SL2.8-H6-ML

SL3-H6-ML

SL5-H6-ML

Low-High

SL1-L6-MH

SL2-L6-ML

SL2.8-L6-MH

SL3-L6-MH

SL5-L6-MH

Low-Low

SL1-L6-ML

SL2-L6-ML

SL2.8-L6-ML

SL3-L6-ML

SL5-L6-ML

Hoisting

Max. Lift(m)

6

6

6

6

6

Speed

(m/min)

High speed

( 50/60Hz)

10/12

8.4/10

7.5/9

7.5/9

4.7/5.6

Low speed

( 50/60Hz)

6.6/8

5.4/6.5

3.7/4.5

3.7/4.5

3.5/4.2

Motor

(Kw x P)

High speed

2.2 x 4

3.7 x 4

5.0 x 4

5.5 x 4

5.5 x 6

Low speed

1.5 x 6

2.5 x 6

2.5 x 8

2.8 x 8

4.2 x 8

Wire rope

Construction

6 x 19

6 x 19

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

6 x 4

8 x 4

9 x 4

9 x 4

11.2 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

20/24

20/24

20/24

20/24

20/24

Low speed

( 50/60Hz)

13/16

13/16

13/16

13/16

13/16

Motor

(Kw x P)

High speed

0.4 x 4

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Low speed

0.2 x 6

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Dimension(approx.)

(mm)

H

480

570

585

585

750

A

500

595

625

625

715

B

480

555

555

555

625

C

405

455

510

510

584

D

290

385

395

395

466

G

255

260

260

260

275

K

200

225

225

225

275

I-Beam and spacing

(mm)

a x b x t

S

T

S

T

S

T

S

T

S

T

200 x 100 x 7

38

60

33

45

-

-

-

-

-

-

250 x 125 x 7.5

37

85

34

76

34

76

34

76

46

68

300 x 150 x 10

32

110

29

95

23

95

23

95

40

86

Min. radius of curvature (m)

1.5

1.8

1.8

1.8

2.3

Weight(approx.) (Kg)

200

350

440

440

680



부산광역시 사상구 괘법동 562-47 104호   전화번호 : 051-328-9711~2   팩스 : 051-328-9710
Copyright ⓒ 2004 NAM SUNG INDUSTEY MACHINERY All right reserved.
