극동호이스트



Creep type Wire Rope Hoist



Mono-Rail  type Hoist

Double-Rail  type Hoist

Combined  type Hoist

Low Head  type Hoist

1 t ~ 5 t

2 t ~ 5 t

7.5/3 t ~ 30/5 t

1 t ~ 5 t

7.5 t ~ 20 t

7.5 t ~ 30 t

35/10 t ~ 70/20 t





35 t ~ 70 t

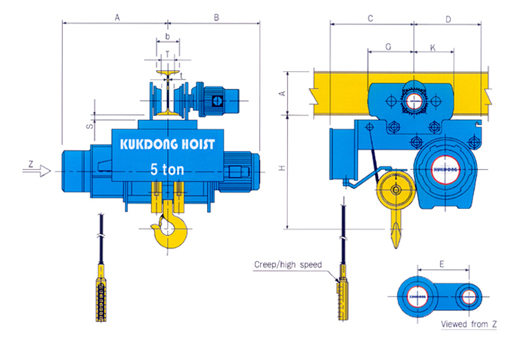

Mono-Rail type Hoist (1 t ~ 5 t)



 Capacity (ton)

1

2

2.8

3

5

Type

High-speed Traversing

C-SM1-H6(12)-MH

C-SM2-H6(12)-MH

C-SM2.8-H6(12)-MH

C-SM3-H6(12)-MH

C-SM5-H6(12)-MH

Low-speed Traversing

C-SM1-H6(12)-ML

C-SM2-H6(12)-ML

C-SM2.8-H6(12)-ML

C-SM3-H6(12)-ML

C-SM5-H6(12)-ML

Hoisting

Max. Lift(m)

6(12)

6(12)

6(12)

6(12)

6(12)

High/Creep speed

(m/min)

50Hz

10/1

8.4/0.84

7.5/0.75

7.5/0.75

4.7/0.47

60Hz

12/1.2

10/1

9/0.9

9/0.9

5.6/0.56

Motor(Kw x P)

High/Creep speed

2.2/0.4 x 4

3.7/0.4 x 4

5.0/1.5 x 4

5.5/1.5 x 4

5.5/1 x 6

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

8 x 2

10 x 2

12 x 2

12 x 2

16 x 2

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

20/24

20/24

20/24

20/24

20/24

Low speed

( 50/60Hz)

13/16

13/16

13/16

13/16

13/16

Motor
(Kw x P)

High speed

0.4 x 4

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Low speed

0.2 x 6

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Dimension(approx.)

(mm)

H

815

980

1115

1115

1325

A

580(680)

625(725)

755(855)

755(855)

850(950)

B

380(480)

430(530)

455(555)

455(555)

525(615)

D

275

310

365

365

405

F

350

395

390

390

420

G

255

260

260

260

275

K

200

225

225

225

275

I-Beam and spacing

(mm)

a x b x t

C

S

T

C

S

T

C

S

T

C

S

T

C

S

T

200 x 100 x 7

324

38

46

454

35

46

-

-

-

-

-

-

-

-

-

250 x 125 x 7.5

337

37

71

467

34

71

465

39

71

465

39

71

485

46

61

300 x 150 x 10

349

32

96

479

29

96

475

29

96

475

29

96

490

40

86

Min. radius of curvature (m)

1.5

1.8

1.8

1.8

2.3

Weight(approx.) (Kg)

225(245)

320(355)

415(460)

415(460)

635(700)

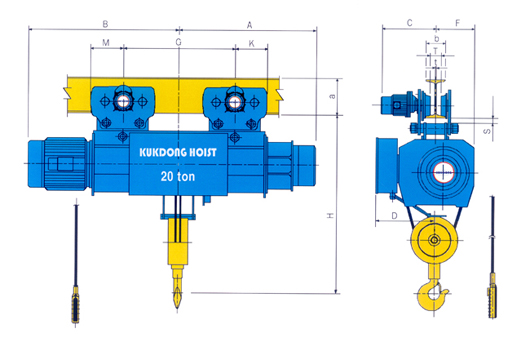

Mono-Rail type Hoist (7.5 t ~ 20 t)



 Capacity (ton)

7.5

10

15

20

Type

High-speed Traversing

C-SM7.5-H12-MH

C-SM10-H12-MH

C-SM15-H12-MH

C-SM20-H12-MH

Low-speed Traversing

C-SM7.5-H12-ML

C-SM10-H12-ML

C-SM15-H12-ML

C-SM20-H12-ML

Hoisting

Max. Lift(m)

12

12

12

12

High/Creep speed

(m/min)

50Hz

3.1/0.31

3.7/0.37

3.5/0.35

3.5/0.35

60Hz

3.8/0.38

4.5/0.45

4.2/0.42

4.2/0.42

Motor (Kw x P)

High/Creep speed

5.5/1 x 6

9/1.1 x 8

13/1.8 x 8

17/1.8 x 8

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

14 x 4

16 x 4

20 x 4

22.4 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

Brake

High speed

0.75 x 4

(2units)

0.75 x 4

(2units)

1.5 x 4

(2units)

1.5 x 4

(2units)

Low speed

0.5 x 6

(2units)

0.5 x 6

(2units)

1.0 x 6

(2units)

1.0 x 6

(2units)

Dimension(approx.)

(mm)

H

1460

1565

2115

2115

A

1170

1230

1430

1480

B

835

955

1170

1220

D

450

510

640

640

F

460

525

625

625

L

850

850

870

935

G

800

800

800

850

K

275

275

300

300

M

275

275

300

300

I-Beam and spacing

(mm)

a x b x t

C

S

T

C

S

T

C

S

T

C

S

T

300 x 150 x 10

485

35

68

480

35

68

-

-

-

-

-

-

450 x 175 x 13

497

30

93

489

30

93

580

32

77

580

32

77

550 x 190 x 13

510

32

118

570

32

118

587

37

92

587

37

92

Min. radius of curvature (m)

For Straight rails only

Weight(approx.) (Kg)

970

1280

2300

2520





 Double-Rail type Hoist (2 t ~ 5 t)



 Capacity (ton)

2

2.8

3

5

Type

High-speed Traversing

C-SD2-H12-MH

C-SD2.8-H12-MH

C-SD3-H12-MH

C-SD5-H12-MH

Low-speed Traversing

C-SD2-H12-ML

C-SD2.8-H12-ML

C-SD3-H12-ML

C-SD5-H12-ML

Hoisting

Max. Lift(m)

12

12

12

12

High/Creep speed

(m/min)

50Hz

8.4/0.84

7.5/0.75

7.5/0.75

4.7/0.47

60Hz

10/1

9/0.9

9/0.9

5.6/0.56

Motor (Kw x P)

High/Creep speed

3.7/0.4 x 4

5.0/1.5 x 4

5.5/1.5 x 4

5.5/1.0 x 6

Wire rope

Construction

6 x 19

6 x 37

6 x 37

6 x 37

Dia.(mm) x No. of ropes

8 x 4

9 x 4

9 x 4

12.5 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

20/24

20/24

20/24

20/24

Low speed

( 50/60Hz)

13/16

13/16

13/16

13/16

Motor

(Kw x P)

High speed

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Low speed

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Dimension(approx.)

(mm)

H

415

420

420

510

R

950

950

950

1150

A

465

465

465

507

B

390

390

390

474

C

430

515

515

560

G

905

1020

1020

1180

K

710

715

715

830

W

650

650

650

760

D

47

47

47

47

L

680

690

690

890

M

112

112

112

119

N

93

93

93

102

Ø P

140

140

140

165

Ø Q

170

170

170

195

Weight(approx.) (Kg)

490

590

590

900

Rail (Kg/m)

15

15

15

15

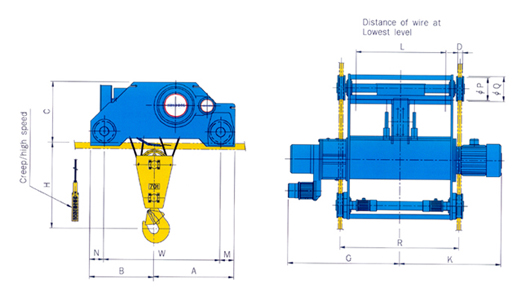

Double-Rail type Hoist (7.5 t ~ 30 t)



 Capacity (ton)

7.5

10

15

20

30

Type

High-speed Traversing

C-SD7.5-H12-MH

C-SD10-H12-MH

C-SD15-H12-MH

C-SD20-H12-MH

C-SD30-H12-MH

Low-speed Traversing

C-SD7.5-H12-ML

C-SD10-H12-ML

C-SD15-H12-ML

C-SD20-H12-ML

C-SD30-H12-ML

Hoisting

Max. Lift(m)

12

12

12

12

12

High/Creep speed

(m/min)

50Hz

3.1/0.31

3.7/0.37

3.5/0.35

3.5/0.35

2.3/0.23

60Hz

3.8/0.38

4.5/0.45

4.2/0.42

4.2/0.42

2.8/0.28

Motor(Kw x P)

High/Creep speed

5.5/1 x 6

9/1.1 x 8

13/1.8 x 8

17/1.8 x 8

17/1.8 x 8

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

14 x 4

16 x 4

20 x 4

22.4 x 4

22.4 x 6

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

0.75 x 4

0.75 x 4

1.5 x 4

1.5 x 4

1.5 x 4

(2units)

Low speed

0.5 x 6

0.5 x 6

1.0 x 6

1.0 x 6

1.0 x 6

(2units)

Dimension(approx.)

(mm)

H

730

775

1175

1175

1480

R

1150

1150

1200

1300

1800

A

510

565

670

670

930

B

495

510

610

610

950

C

645

650

880

880

980

G

1170

1230

1430

1480

1730

K

835

955

1170

1220

1480

W

800

865

1000

1000

1540

D

58

58

58

58

70

L

850

850

870

935

1420

M

110

110

140

140

180

N

95

100

140

140

160

Ø P

165

165

220

220

250

Ø Q

195

195

250

250

280

Weight(approx.) (Kg)

955

1265

1920

2385

3536

Rail (Kg/m)

15

15

22

22

30

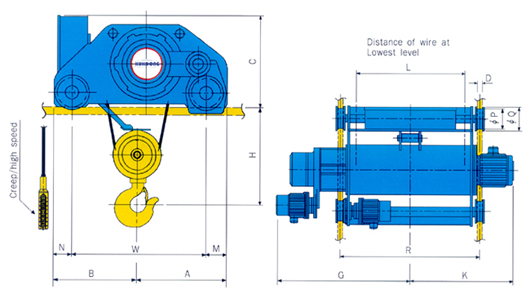

Double-Rail type Hoist (35 t ~ 70 t)



 Capacity (ton)

35

50

60

70

Type

High Speed Traversing

C-SD35-H12-MH

C-SD50-H12-MH

C-SD60-H12-MH

C-SD70-H12-MH

Low Speed Traversing

C-SD35-H12-ML

C-SD50-H12-ML

C-SD60-H12-ML

C-SD70-H12-ML

Hoisting

Max. Lift(m)

12

12

12

12

High/Creep speed

(m/min)

50Hz

4/0.4

2.7/0.27

2/0.2

2/0.2

60Hz

4.8/0.48

3.2/0.32

2.4/0.24

2.4/0.24

Motor (Kw x P)

High/Creep speed

33/3.7 x 6/4

33/3.7 x 6/4

33/3.7 x 6/4

33/3.7 x 6/4

Wire rope

Construction

6 x Fi(25)

6 x Fi(25)

6 x Fi(25)

6 x Fi(25)

Dia.(mm) x

No. of ropes

28 x 4

28 x 6

28 x 8

28 x 8

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

2.2 x 4

2.2 x 4

(2units)

2.2 x 4

(2units)

2.2 x 4

(2units)

Low speed

1.5 x 6

1.5 x 6

(2units)

1.5 x 6

(2units)

1.5 x 6

(2units)

Dimension(approx.)

(mm)

H

1490

1680

1780

1780

R

1550

2300

2800

2800

A

1025

1432

1525

1525

B

955

1243

1150

1150

C

1013

1195

1195

1195

G

1735

2060

2310

2310

K

1460

1860

2110

2110

W

1550

2125

2125

2075

D

70

80

80

80

L

1044

1430

1930

1930

M

215

275

275

300

N

215

275

275

300

Ø P

355

450

450

500

Ø Q

395

490

490

540

Weight(approx.) (Kg)

5400

7200

9050

9200

Rail (Kg/m)

37

50

50

50

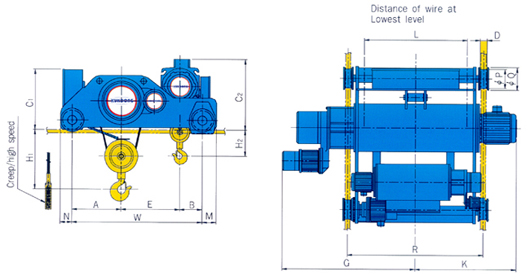

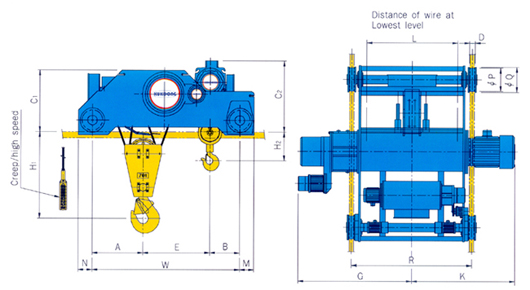

Combined type Hoist (7.5/3 t ~ 30/5 t)



 Capacity (ton)

7.5/3

10/3

15/5

20/5

30/5

Type

High-speed Traversing

C-SD7.5/3-H12-MH

C-SD10/3-H12-MH

C-SD15/5-H12-MH

C-SD20/5-H12-MH

C-SD30/5-H12-MH

Low-speed Traversing

C-SD7.5/3-H12-ML

C-SD10/3-H12-ML

C-SD15/5-H12-ML

C-SD20/5-H12-ML

C-SD30/5-H12-ML

Hoisting

Max. Lift(m)

12

12

12

12

12

12

12

12

12

12

High/Creep speed

(m/min)

50Hz

3.1/

0.31

7.5/

0.75

3.7/

0.37

7.5/

0.75

3.5/

0.35

4.7/

0.47

3.5/

0.35

4.7/

0.47

2.3/

0.23

4.7/

0.47

60Hz

3.8/

0.38

9/

0.9

4.5/

0.45

9/

0.9

4.2/

0.42

5.6/

0.56

4.2/

0.42

5.6/

0.56

2.8/

0.28

5.6/

0.56

Motor (Kw x P)

High/Creep speed

5.5/1 x 6

5.5/1.5 x 4

9/1.1 x 8

5.5/1.5 x 4

13/1.8 x 8

5.5/1 x 6

17/1.8 x 8

5.5/1 x 6

17/1.8 x 8

5.5/1 x 6

Wire rope

Construction

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

14 x 4

12 x 2

16 x 4

12 x 2

20 x 4

16 x 2

22.4 x 4

16 x 2

22.4 x 6

16 x 2

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

0.75 x 4

0.75 x 4

1.5 x 4

1.5 x 4

1.5 x 4

(2units)

Low speed

0.5 x 6

0.5 x 6

1 x 6

1 x 6

1 x 6

(2units)

Dimension(approx.)

(mm)

H1

730

775

995

1175

1480

H2

350

350

365

350

300

R

1150

1150

1200

1300

1800

A

400

410

550

550

790

B

350

350

390

480

460

E

700

830

710

690

1000

W

1450

1590

1650

1720

2250

M

110

110

140

140

180

N

95

100

140

140

160

C1

645

650

880

880

980

C2

770

770

970

970

990

G

1170

1230

1430

1480

1730

K

835

955

1170

1220

1480

L

850

850

870

935

1418

D

58

58

58

58

70

Ø P

165

165

220

220

250

Ø Q

195

195

250

250

280

Weight(approx.) (Kg)

2000

2400

2650

3500

4900

Rail (Kg/m)

15

15

22

22

30





Combined type Hoist (35/10 t ~ 70/20 t)



 Capacity (ton)

35/10

50/15

60/20

70/20

Type

High-speed Traversing

C-SD35/10-H12-MH

C-SD50/15-H12-MH

C-SD60/20-H12-MH

C-SD70/20-H12-MH

Low-speed Traversing

C-SD35/10-H12-ML

C-SD50/15-H12-ML

C-SD60/20-H12-ML

C-SD70/20-H12-ML

Hoisting

Max. Lift(m)

12

12

12

12

12

12

12

12

High/Creep speed
(m/min)

50Hz

4/0.4

3.7/0.37

2.7/0.27

3.5/0.35

2/0.2

3.5/0.35

2/0.2

3.5/0.35

60Hz

4.8/0.48

4.5/0.45

3.2/0.32

4.2/0.42

2.4/0.24

4.2/0.42

2.4/0.24

4.2/0.42

Motor (Kw x P)

High/Creep speed

33/3.7 x 6/4

9/1.1 x 8

33/3.7 x 6/4

13/1.8 x 8

33/3.7 x 6/4

17/1.8 x 8

33/3.7 x 6/4

17/1.8 x 8

Wire rope

Construction

6 x Fi(25)

6 x 37

6 x Fi(25)

6 x 37

6 x Fi(25)

6 x 37

6 x Fi(25)

6 x 37

Dia.(mm) x

No. of ropes

28 x 4

16 x 4

28 x 6

20 x 4

28 x 8

22.4 x 4

28 x 8

22.4 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

12.5/15

12.5/15

12.5/15

12.5/15

Low speed

( 50/60Hz)

8.3/10

8.3/10

8.3/10

8.3/10

Motor

(Kw x P)

High speed

2.2 x 4

2.2 x 4

(2units)

2.2 x 4

(2units)

2.2 x 4

(2units)

Low speed

1.5 x 6

1.5 x 6

(2units)

1.5 x 6

(2units)

1.5 x 6

(2units)

Dimension(approx.)

(mm)

H1

1490

1680

1780

1780

H2

170

190

383

358

R

1550

2300

2800

2800

A

968

968

968

943

B

607

607

607

582

E

1375

1375

1375

1375

W

2950

2950

2950

2900

M

215

275

275

300

N

215

275

275

300

C1

1013

1220

1220

1220

C2

1235

1570

1607

1607

G

1735

2060

2310

2310

K

1460

1860

2110

2110

L

1044

1430

1930

1930

D

70

80

80

80

Ø P

355

450

450

500

Ø Q

395

490

490

540

Weight(approx.) (Kg)

7000

9000

11200

12400

Rail (Kg/m)

37

50

50

50





 Low Head type Hoist (1 t ~ 5t)



 Capacity (ton)

1

2

2.8

3

5

Type

High-speed Traversing

C-SL1-H6-MH

C-SL2-H6-MH

C-SL2.8-H6-MH

C-SL3-H6-MH

C-SL5-H6-MH

Low-speed Traversing

C-SL1-H6-ML

C-SL2-H6-ML

C-SL2.8-H6-ML

C-SL3-H6-ML

C-SL5-H6-ML

Hoisting

Max. Lift(m)

6

6

6

6

6

High/Creep speed

(m/min)

50Hz

10/1

8.4/0.84

7.5/0.75

7.5/0.75

4.7/0.47

60Hz

12/1.2

10/1

9/0.9

9/0.9

5.6/0.56

Motor(Kw x P)

High/Creep speed

2.2/0.4 x 4

3.7/0.4 x 4

5.0/1.5 x 4

5.5/1.5 x 4

5.5/1 x 6

Wire rope

Construction

6 x 19

6 x 19

6 x 37

6 x 37

6 x 37

Dia.(mm) x

No. of ropes

6 x 4

8 x 4

9 x 4

9 x 4

11.2 x 4

Brake

DC magnet disc brake

Traversing

Speed

(m/min)

High speed

( 50/60Hz)

20/24

20/24

20/24

20/24

20/24

Low speed

( 50/60Hz)

13/16

13/16

13/16

13/16

13/16

Motor

(Kw x P)

High speed

0.4 x 4

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Low speed

0.2 x 6

0.75 x 4

0.75 x 4

0.75 x 4

0.75 x 4

Dimension(approx.)

(mm)

H

480

570

585

585

750

A

680

740

840

840

940

B

480

555

555

555

625

C

405

455

510

510

584

D

290

385

395

395

466

G

255

260

260

260

275

K

200

225

225

225

275

E

325

370

375

375

400

I-Beam and spacing

(mm)

a x b x t

S

T

S

T

S

T

S

T

S

T

200 x 100 x 7

38

60

35

46

-

-

-

-

-

-

250 x 125 x 7.5

37

85

24

71

25

71

25

71

-

-

300 x 150 x 10

32

110

22

96

23

96

23

96

26

86

450 x 175 x 13

-

-

-

-

-

-

-

-

23

111

Min. radius of curvature (m)

1.5

1.8

1.8

1.8

2.3

Weight(approx.) (Kg)

275

440

545

545

775



부산광역시 사상구 괘법동 562-47 104호   전화번호 : 051-328-9711~2   팩스 : 051-328-9710
Copyright ⓒ 2004 NAM SUNG INDUSTEY MACHINERY All right reserved.
